CameraReview

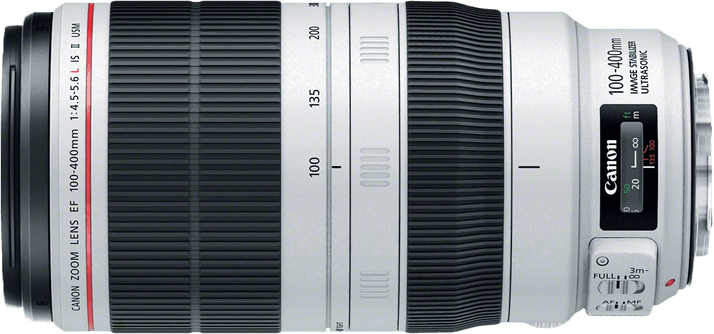

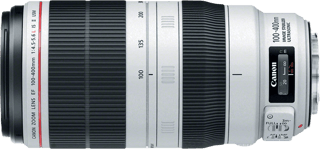

Canon EF 100-400mm F/4.5-5.6L IS II USM
68
SCORE
Canon · 100-400 mm · f/5.6 · Canon EF mount · Full Frame

Canon EF 100-400mm F/4.5-5.6L IS II USM

General 68Physical 99Optics 53Features 93Construction 34
From $2,199 — 1 offer
KEY FACTS
BrandCanon
Production started2014
Production statusIn Production
VersionII
Pro brandingL

General 68

Brand
Canon
Production started
2014
Production status
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Version
The iteration or release number of a particular lens model.
II
Pro branding
Specific branding codes used for professional-tier lenses.
L

Physical 99

Lens mount
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Canon EF
System
Indicates which camera system the lens is designed to attach to.
Canon EOS
Maximum format
Largest sensor size compatible with the lens.
Full Frame
Lens weight
1570 g
Lens diameter
Width of the lens at its widest point
94 mm
Lens length
How long the lens is from front to back.
193 mm
Front filter compatible
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front filter size
Diameter of attachable filters.
77 mm
Flange focal distance
Distance from lens mount to sensor.
44 mm

Optics 53

Focal range
Shortest to longest focal length of the lens (zoom range start - end )
100-400 mm
Min focal length
100 mm
Max focal length
400 mm
Aperture range
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
4.5-5.6
Max aperture wide
4.5
Max aperture zoom
5.6
Focal length AOV
6.19-24.42
Min focal length diagonal
24.42
Max focal length diagonal
6.19
Diaphragm type
Structure and design of the aperture
Automatic
Blades
Number of diaphragm blades in aperture
9020
Zoom lens
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom mechanism
System enabling zoom function
Manual
Zoom ring
If zooming is adjusted using a zoom ring
Yes
Zoom type
The design or approach to zooming
Rotary
Zoom method
How the zoom is physically accomplished
Extending
Closest focusing distance
Minimum distance for a subject to be in focus.
98 cm01500
Maximum magnification
Largest size a subject can be reproduced
1:3.23
Autofocus mode
Yes
Manual mode
Yes
Manual focusing ring
Yes

Features 93

Weather sealing
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine coating
Coating to repel water and oil from lens elements.
Yes
Built in lens hood
No
Lens hood type
Round (Bayonet-type)
Zoom lock
Zoom lock allows the zoom ring to be locked at the desired focal length
Yes
Teleconverter
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
Yes
Teleconverter type
Specific teleconverters are only compatible with specific lenses. Check the manufacturer's guidelines for compatibility before purchase.
Canon Extender EF 1.4X II → 140-560mm F/6.3-7.8, Canon Extender EF 1.4X III → 140-560mm F/6.3-7.8, Canon Extender EF 2X II → 200-800mm F/9-11.2, Canon Extender EF 2X III → 200-800mm F/9-11.2
Tilt range
n/a
Shift range
n/a
Tiltshift rotation
No
Lens rotation
No
Image stabilization
Yes
IS efficiency
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
4.0

Construction 34

Groups
16
Aspherical elements
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
0
Bi aspherical elements
Elements with two non-spherical surfaces
0
Low dispersion
Elements that reduce chromatic aberration
1
Super low dispersion
Advanced elements further reducing chromatic aberration
1
CA reduction
Built-in features to reduce chromatic aberration
1
Internal focusing
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
No
Floating element system
A floating element system adjusts certain internal elements independently during focusing to minimize optical aberrations and maintain image sharpness, especially at close focusing distances.
No

Specs

Lens type
Zoom Lens
Maximum aperture
5.6
Focal range
Shortest to longest focal length of the lens (zoom range start - end )
100-400 mm
