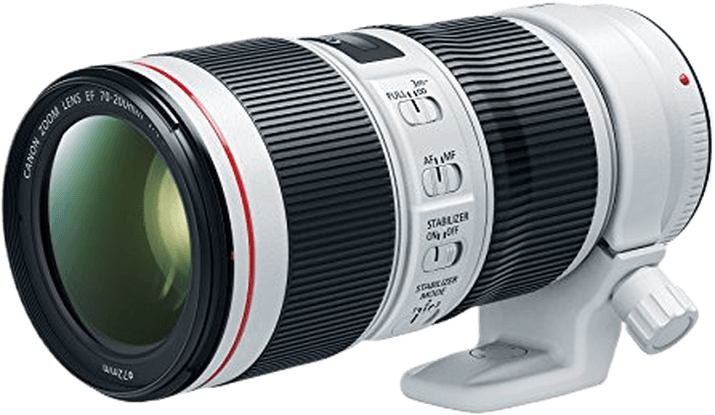

Canon EF 70-200mm F/4L IS II USM
77
SCORE
Canon · f/4 · Canon EF mount

Canon EF 70-200mm F/4L IS II USM

General 77Physical 100Optics 68Features 97Construction 33
Where to buy — 2 offers
KEY FACTS
BrandCanon
Release Year2018
Production StatusIn Production
VersionII
Pro BrandingL
What We Like
Not yet summarised.
Worth Knowing
Relatively expensive
Narrower maximum aperture than previous version
Prone to veiling glare in bright light
No tripod collar for mounting

General 77

Brand
Canon
Release Year
2018
Production Status
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Version
The iteration or release number of a particular lens model.
II
Pro Branding
Specific branding codes used for professional-tier lenses.
L
Lens Mount
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Canon EF
System
Indicates which camera system the lens is designed to attach to.
Canon EOS
Maximum Format
Largest sensor size compatible with the lens.
Full Frame

Physical 100

Lens Weight
780 g
Lens Diameter
Width of the lens at its widest point
80 mm
Lens Length
How long the lens is from front to back.
176 mm
Front Filter Compatible
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
Diameter of attachable filters.
72 mm

Optics 68

Focal Range
Shortest to longest focal length of the lens (zoom range start - end )
70–200 mm
Aperture Range
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
4
Focal Length Angle of View
34.35°–12.35°
Flange Focal Distance
Distance from lens mount to sensor.
44 mm
Diaphragm Type
Structure and design of the aperture
Automatic
Blades
Number of diaphragm blades in aperture
9020
Zoom Lens
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
System enabling zoom function
Manual
Zoom Ring
If zooming is adjusted using a zoom ring
Yes
Zoom Type
The design or approach to zooming
Rotary
Closest Focusing Distance
Minimum distance for a subject to be in focus.
100 cm01500
Maximum Magnification
Largest size a subject can be reproduced
0.27x
Autofocus Mode
Yes
Manual Mode
Yes
Manual Focusing Ring
Yes

Features 97

Weather Sealing
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
Coating to repel water and oil from lens elements.
Yes
Built In Lens Hood
No
Lens Hood Type
Round (Bayonet-type)
Zoom Lock
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
Yes
Image Stabilization
Yes
IS Efficiency
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
5 stops

Construction 33

Elements
Lens elements refer to individual pieces of glass within the lens.
20
Groups
15
Aspherical Elements
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
0
Bi Aspherical Elements
Elements with two non-spherical surfaces
0
Low Dispersion
Elements that reduce chromatic aberration
1
Super Low Dispersion
Advanced elements further reducing chromatic aberration
0
CA Reduction
Built-in features to reduce chromatic aberration
1
Internal Focusing
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
No
