CameraReview

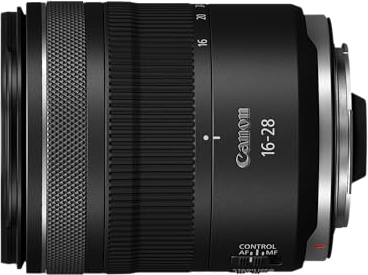

Canon RF 16-28mm F2.8 IS STM

Canon · 16–28 mm · f/2.8 · Image Stabilization

Canon RF 16-28mm F2.8 IS STM

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 64
Optics 74
Features 60
Construction 54
67
SCORE /100
Buying Options
What We Like
+Constant f/2.8 throughout the zoom
+Wide 16–28mm span for interiors
+Stabilised handheld shooting in low light
+Weather sealing for outdoor work
+Weighs just 15.7 oz (445 g)
Worth Knowing
−Fits Canon RF mount only
−No zoom lock on the barrel
−No fluorine coating on front
−Zoom ends at 28mm

General

About This Lens

This Canon wide-angle zoom spans 16–28mm on full-frame RF-mount cameras. Released in 2025 and still in production, it mounts directly on the system's mirrorless bodies.

Its natural subjects are architecture, landscapes, city streets and other wide scenes. Wedding and event photographers also use this span for venue interiors and group spaces. The range runs from a very wide 16mm to a moderate 28mm.

The main trade-off is reach. It stops at 28mm, so portraits, details and everyday shots call for a second lens. In return, you get a fast aperture in a light body.

BrandCanon
Release Year2025
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Canon RF
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Canon EOS R
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Full Frame

Physical

64/100
About the Build

At 15.7 oz (445 g), this is a light lens for a constant f/2.8 wide zoom. The barrel measures 3.01 in (76.5 mm) across and 3.58 in (91 mm) long, so it stays compact in a bag. A screw-in filter must match the lens's 67mm thread.

Lens Weight445 g
Lens Diameter
ⓘ
Width of the lens at its widest point
76.5 mm
Lens Length
ⓘ
How long the lens is from front to back.
91 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
67 mm

Optics

74/100
About the Optics

At 16mm you can frame a whole room or a sweeping coastline from close in. Zooming to 28mm gives a calmer view that still keeps width for streets and buildings. Between the two, you can adjust composition without stepping back in cramped spaces. That flexibility matters for interiors and tight urban scenes.

The f/2.8 maximum stays constant through the zoom. Your exposure and shutter speed therefore hold as you zoom. The wide aperture also gathers more light for dim churches, evening streets and night skies. Depth of field remains deep at these focal lengths, so the gain is workable shutter speeds rather than blurred backgrounds.

Close focus reaches 0.8 ft (25 cm). You can place a foreground rock, plant or doorway near the camera and still keep the wider scene beyond it. Maximum magnification reaches 0.26x, so a near subject can become a clear feature of the picture.

Nine aperture blades help keep the opening round as you stop down. That helps night highlights, such as distant street lamps, stay evenly shaped.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
16–28 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
2.8
Focal Length Angle of View108.167°–75°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
20 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
9020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
25 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.26x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingNo

Features

60/100
About the Features

Image stabilisation steadies the camera for handheld work. In dim interiors, at dusk, or under night street lights, it helps hold shots steady at slower shutter speeds. The steadier view through the finder also makes careful framing easier.

Weather sealing guards against dust and moisture. That suits coastal paths, changeable mountain weather and long days outdoors. A damp morning by the sea is less of a concern.

Two absences stand out. There is no zoom lock, so check the barrel position before shooting. The front element also carries no fluorine coating, so fingerprints and rain drops need routine cleaning.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Lens Hood TypeRound
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
5.5 stops

Construction

54/100
About the Construction

Focus is internal, so the moving parts stay inside the barrel while you focus. Two aspherical elements help correct distortion, which can bend straight lines at these focal lengths. That matters when walls and doorframes should stay straight in the frame.

Four low-dispersion elements help reduce chromatic aberration, where colours separate into fringes along high-contrast edges. Night scenes with bright lamps are one place those edges appear.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
16
Groups13
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
2
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
4
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
