CameraReview

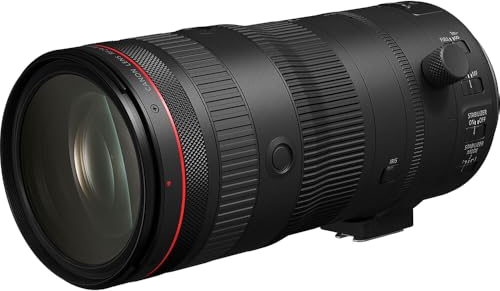

Canon RF 24-105mm F2.8 L IS USM Z

Canon · 24–105 mm · f/2.8 · L · Image Stabilization

Canon RF 24-105mm F2.8 L IS USM Z

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 99
Optics 83
Features 79
Construction 54
83
SCORE /100
Buying Options
What We Like
+Constant f/2.8 aperture through the zoom
+24–105mm covers wide and portrait framing
+Built-in stabilisation steadies handheld shots
+Weather sealing for outdoor shoots
+0.29x magnification for detail shots
Worth Knowing
−Heavy for all-day handheld use
−Filters must match the 82mm thread
−Power zoom requires a separate adapter

General

About This Lens

This Canon zoom spans 24–105mm on full-frame RF-mount cameras. It suits weddings, events and documentary work where the distance to a subject changes. You can show a room, then give one person more of the frame. Canon introduced it in 2023.

Its main trade-off is weight. A constant f/2.8 maximum aperture across this range comes in a substantial body. Consider how often you work handheld and how far you carry your equipment. It can reduce lens changes during an event.

BrandCanon
Release Year2023
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Pro Branding
ⓘ
Specific branding codes used for professional-tier lenses.
L
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Canon RF
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Canon EOS R
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Full Frame

Physical

99/100
About the Build

It weighs 2 lb 14.9 oz (1330 g), with a barrel 3.48 in (88.5 mm) across and 7.83 in (199 mm) long. Our physical specifications score is 99 out of 100.

Filters screw directly into an 82mm thread, so a polariser or ND filter must match that size before you buy. On long days, a strap or monopod helps.

Lens Weight1330 g
Lens Diameter
ⓘ
Width of the lens at its widest point
88.5 mm
Lens Length
ⓘ
How long the lens is from front to back.
199 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
82 mm

Optics

83/100
About the Optics

The maximum aperture stays at f/2.8 throughout the zoom. You can retain that opening when you change framing, though a different part of the scene may need a different exposure. Compared with a smaller opening, f/2.8 gives more room for a faster shutter speed or lower ISO in a dim venue.

At close subject distances, f/2.8 can give a portrait a soft background. At 105mm, look for space between the person and the guests or decorations behind them. Stop down when several people must remain sharp. At 24mm, you can include more of an interior from the same position.

Closest focus is 1.5 ft (45 cm) throughout the zoom, measured from the sensor. Maximum magnification reaches 0.29x at 105mm. That suits food, flowers and table details. The front glass sits closer to the subject, so leave room and watch for shadows. Very small objects will still occupy a modest part of the frame.

The range also helps when your position is fixed. During a speech, you can change between a wider view of the gathering and a tighter view of the speaker. The framing available still depends on your distance. The optics specification score is 83 out of 100.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
24–105 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
2.8
Focal Length Angle of View84°–23.33°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
20 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
11020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
45 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.29x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

79/100
About the Features

Built-in stabilization reduces camera shake for still subjects at slower shutter speeds. It helps with handheld views of interiors or quiet moments at dusk. A person who moves still needs enough shutter speed for that movement.

Weather sealing helps resist dust and moisture outdoors. Use cover in persistent rain. Fluorine coating helps water and oily marks wipe away from the glass during field cleaning.

The zoom ring works manually. An optional PZ-E2 or PZ-E2B adapter adds powered zoom for controlled changes while recording video. The adapter is a separate accessory, so include it in the equipment you assess for that use.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
Yes
Built In Lens HoodNo
Lens Hood TypePetal
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
5.5 stops

Construction

54/100
About the Construction

Three aspherical elements help correct distortion, which matters for interior shots at 24mm where straight edges run across the frame. Four low-dispersion elements help reduce chromatic aberration, the colour fringing that can appear along high-contrast edges such as a dark suit against a bright window.

Focusing is internal, so the barrel does not extend while the lens focuses.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
23
Groups18
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
3
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
4
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
