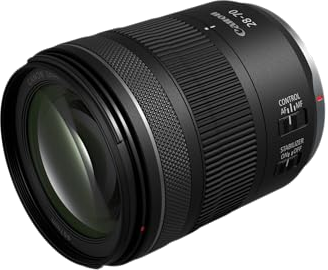

Canon RF 28-70mm F2.8 IS STM

Canon · 28–70 mm · f/2.8 · Image Stabilization

Canon RF 28-70mm F2.8 IS STM

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 64
Optics 81
Features 60
Construction 54
71
SCORE /100
Buying Options
What We Like
+Constant f/2.8 throughout the zoom
+Compact body for everyday carry
+Stabilisation for handheld work
+Weather sealing for outdoor use
+Close focusing for small subjects
Worth Knowing
−Wide end stops at 28mm
−Extend barrel before shooting

General

About This Lens

This Canon standard zoom covers 28–70mm on full-frame RF cameras. The range suits people, street scenes, travel and everyday photography. You can show a person with their surroundings, then give a face or detail more of the frame from the same position. Canon introduced it in 2024.

The main trade-off is the wide end. A lens that starts wider can include more of a tight interior from the same position. The constant f/2.8 maximum aperture is useful for a day that moves between outdoor scenes and dim rooms.

BrandCanon
Release Year2024
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Canon RF
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Canon EOS R
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Full Frame

Physical

64/100
About the Build

The lens weighs 1 lb 1.5 oz (495 g) and measures 3.63 in (92.2 mm) long when retracted. Extend the barrel before shooting. The compact stored size suits a small camera bag. Screw-in filters must match the 67mm front thread to attach directly.

Lens Weight495 g
Lens Diameter
ⓘ
Width of the lens at its widest point
76.5 mm
Lens Length
ⓘ
How long the lens is from front to back.
92.2 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
67 mm

Optics

81/100
About the Optics

At 28mm, you can include a group or show people within a street scene. At 70mm, one person or a table detail becomes larger from the same position. The zoom can reduce lens changes during a family outing. How much fits still depends on where you stand.

The maximum aperture remains f/2.8 throughout the zoom. You can retain that opening when framing changes, though a different part of the scene may need a different exposure. In a dim room, it gives more room for a faster shutter speed or lower ISO than a smaller opening.

At close portrait distances, f/2.8 can soften a background behind the person. More space between subject and background helps. Stop down when several people at different distances must stay sharp. A moving person still needs enough shutter speed for their movement.

Closest focus is 0.8 ft (24 cm) in manual focus at 28mm, measured from the sensor. Autofocus has a longer minimum distance at that setting. Maximum magnification reaches 0.24x at 70mm in either mode. These limits suit food, flowers and everyday objects. At close distances, leave room ahead of the glass and avoid shading the object. Depth of field becomes thinner as you move closer. Focus on the important detail, then stop down if more of the subject needs to remain sharp.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
28–70 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
2.8
Focal Length Angle of View75°–34°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
20 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
9020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
24 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.24x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

60/100
About the Features

Built-in stabilization helps reduce camera shake for still subjects at slower shutter speeds. It is useful for a quiet interior or an evening street scene. At 70mm, small hand movements have a greater effect on the image. Stabilization cannot stop a person moving during the exposure.

Dust and moisture resistance help during outdoor use. Protect the lens in persistent rain. Keep the camera connection clean and dry when changing lenses, and remove loose grit before wiping the front glass.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Lens Hood TypePetal
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
5.5 stops

Construction

54/100
About the Construction

Two aspherical elements help correct distortion and spherical aberration, which can bend straight lines or soften detail. Two UD elements help reduce coloured fringes at high-contrast edges, such as window frames against bright sky. Internal focusing keeps barrel length unchanged while focus moves.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
15
Groups12
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
2
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
2
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
