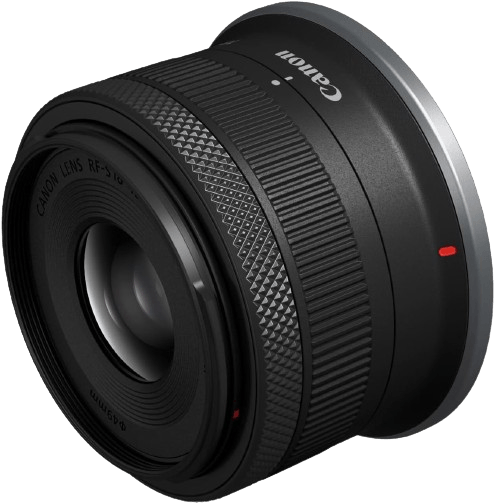

Canon RF-S 18-45mm F/4.5-6.3 IS STM
Canon · 18–45 mm · f/4.5–6.3 · Image Stabilization

Score Breakdown
Scores combine our editorial testing with published lab data.
General | |
|---|---|
About This LensCanon introduced this lens in 2022, and it remains in production. It is made for the RF-S mount on APS-C mirrorless cameras. The 18–45mm range takes in a wide view for rooms, groups and streets, then tightens to a short telephoto for portraits and detail shots. For a new APS-C body owner, it makes a straightforward first zoom. That spread suits travel and everyday photography, where one light lens covers most frames without swaps. The main trade-off is speed. The maximum aperture opens to f/4.5 at 18mm and falls to f/6.3 at 45mm. The lens therefore favours daylight and lit interiors over dim evening scenes. | |
| Brand | Canon |
| Release Year | 2022 |
Production Status ⓘCurrent status of lens manufacturing (e.g., in production, discontinued). | |
Lens Mount ⓘThe lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras. | Canon RF-S |
System ⓘIndicates which camera system the lens is designed to attach to. | Canon EOS R (APS-C) |
Maximum Format ⓘLargest sensor size compatible with the lens. | |
Physical57/100 | |
About the BuildThe lens weighs just 4.6 oz (130 g) and measures 2.71 in (68.9 mm) wide by 1.74 in (44.3 mm) long. It adds little bulk to a small mirrorless body. The front takes 49mm screw-in filters, so any filter you buy must match that thread. | |
| Lens Weight | 130 g |
Lens Diameter ⓘWidth of the lens at its widest point | 68.9 mm |
Lens Length ⓘHow long the lens is from front to back. | 44.3 mm |
Front Filter Compatible ⓘSome lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove. | |
Front Filter Size ⓘDiameter of attachable filters. | 49 mm |
Optics51/100 | |
About the OpticsAt 18mm the wide end fits hotel rooms, dinner tables and tight streets, keeping whole scenes in frame. At 45mm you can tighten on a single person or a market stall detail. This span covers a day of casual shooting without lens changes. The aperture is the working limit. At f/4.5 wide and f/6.3 at the long end, handheld evening shots need high ISO. In daylight the setting rarely restricts you. Depth of field also stays deep at these openings, so portraits keep busy backgrounds fairly sharp rather than melting them away. Close focusing reaches 0.7 ft (20 cm), so you can lean in on food, flowers or shop goods. The maximum magnification of 0.16x means small subjects still record at modest size on the sensor. Zoom position also changes perspective. Near 18mm you must step close to fill the frame, which exaggerates depth between foreground and background. Near 45mm you stand farther back, which flattens a portrait's features more gently. | |
Focal Range ⓘShortest to longest focal length of the lens (zoom range start - end ) | 18–45 mm |
Aperture Range ⓘLargest aperture at the lens's shortest focal length to longest focal length (aperture range start - end) | 4.5–6.3 |
| Focal Length Angle of View | 73.37°–33.19° |
Flange Focal Distance ⓘDistance from lens mount to sensor. | 20 mm |
Diaphragm Type ⓘStructure and design of the aperture | |
Blades ⓘNumber of diaphragm blades in aperture | 7020 |
Zoom Lens ⓘZoom allows you to vary the focal length, change between long shots and close-ups | |
Zoom Mechanism ⓘSystem enabling zoom function | |
Zoom Ring ⓘIf zooming is adjusted using a zoom ring | |
Zoom Type ⓘThe design or approach to zooming | |
Closest Focusing Distance ⓘMinimum distance for a subject to be in focus. | 20 cm01500 |
Maximum Magnification ⓘLargest size a subject can be reproduced | 0.16x |
| Autofocus Mode | |
| Manual Mode | |
| Manual Focusing Ring | |
Features22/100 | |
About the FeaturesThe built-in image stabilisation helps reduce blur from camera shake at slower shutter speeds. That matters most near 45mm, where the f/6.3 opening can push shutter speeds down in shade or indoors. Steadier handheld frames let you keep ISO lower in those conditions. The stabilisation also helps when you lean in near the 0.7 ft (20 cm) close-focus limit, where small movements show clearly at that scale. The feature set is otherwise thin. There is no weather sealing, so keep the lens out of rain and blowing dust. The front element also lacks a fluorine coating, so nothing helps repel water or oil, and there is no zoom lock. | |
Weather Sealing ⓘWeather sealing capabilities will give you more confidence when shooting in unfavourable conditions. | No |
Fluorine Coating ⓘCoating to repel water and oil from lens elements. | No |
| Built In Lens Hood | No |
| Lens Hood Type | |
Zoom Lock ⓘZoom lock allows the zoom ring to be locked at the desired focal length | No |
Teleconverter ⓘA teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification | No |
| Image Stabilization | Yes |
IS Efficiency ⓘIS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides. | 4 stops |
Construction15/100 | |
About the ConstructionThe optical package is simple: seven elements in seven groups. Canon includes aspherical elements in the design. Their specially shaped surfaces help correct optical faults, including distortion that can curve straight edges. That correction is most useful for wide interior and street shots, where straight lines fill the frame. Such a straightforward build suits a lens meant to stay small and light. | |
Elements ⓘLens elements refer to individual pieces of glass within the lens. | 7 |
| Groups | 7 |
Aspherical Elements ⓘThe number of aspherical lens elements which can help correct aberrations such as spherical aberration. | 1 |
Bi Aspherical Elements ⓘElements with two non-spherical surfaces | 0 |
Low Dispersion ⓘElements that reduce chromatic aberration | 0 |
Super Low Dispersion ⓘAdvanced elements further reducing chromatic aberration | 0 |
CA Reduction ⓘBuilt-in features to reduce chromatic aberration | 0 |
Internal Focusing ⓘInternal Focusing means that the lens does not change in size during focusing, and the front element does not rotate. | No |
