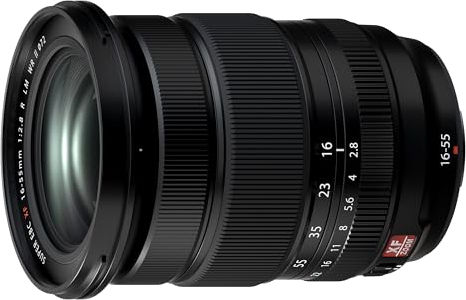

Fujifilm XF 16-55mm f/2.8 R LM WR II

Fujifilm · 16–55 mm · f/2.8 · XF

Fujifilm XF 16-55mm f/2.8 R LM WR II

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 93
Optics 83
Features 52
Construction 55
76
SCORE /100
Buying Options
What We Like
+Bright f/2.8 light at every length
+Sealed against rain and dust
+Wide 16mm to portrait 55mm
+Fluorine coating eases front cleaning
+Just 14.5 oz (410 g)
Worth Knowing
−No image stabilization
−No zoom lock
−Filters must be 72mm

General

About This Lens

This standard zoom gives Fujifilm X APS-C bodies an everyday workhorse. Its 16-55mm span runs from wide scenes to portrait length. Fujifilm launched this second-generation model in 2024, and it remains in current production.

That range suits travel, street, events and general assignment work, where a single lens must handle varied subjects through a day. You can frame a room at 16mm, then tighten to 55mm for a portrait without changing lenses. Wedding and documentary shooters who work one lens all day fit it best.

The main trade-off is the missing image stabilization.

BrandFujifilm
Release Year2024
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Version
ⓘ
The iteration or release number of a particular lens model.
II
Pro Branding
ⓘ
Specific branding codes used for professional-tier lenses.
XF
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Fujifilm X
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Fujifilm X
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
APS-C

Physical

93/100
About the Build

At 14.5 oz (410 g), this zoom is a practical one-lens choice for a full day out. The body runs 3.74 in (95 mm) long and measures 3.08 in (78.3 mm) across. Screw-in filters must match the 72mm front thread. The physical score is 93.

Lens Weight410 g
Lens Diameter
ⓘ
Width of the lens at its widest point
78.3 mm
Lens Length
ⓘ
How long the lens is from front to back.
95 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
72 mm

Optics

83/100
About the Optics

The 16-55mm range on this APS-C zoom runs from a wide view to a short telephoto. At 16mm you can frame tight interiors, busy streets and open landscapes. Turning to 55mm brings the view down to head-and-shoulders portraits and isolated details. Mid-range settings handle groups and casual portraits. One lens therefore covers most situations a day of varied shooting presents.

The f/2.8 maximum aperture stays constant through the zoom, so the same widest setting is available at 16mm and at 55mm. Indoors or at dusk, you keep that widest setting instead of losing light as you zoom toward 55mm.

Depth of field still shifts with focal length. At 55mm, f/2.8 separates a portrait subject from a busy background, and the blur is strongest there, where the lens makes the subject larger. At 16mm, the same aperture keeps more of a room or street scene sharp.

Close focusing reaches 1 ft (30 cm), useful for food, flowers and tabletop products at near distances. Maximum magnification is 0.21x. Eleven aperture blades help the opening stay round, supporting smooth out-of-focus areas. The optics score is 83.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
16–55 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
2.8
Focal Length Angle of View83.2°–29°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
17.7 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
11020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
30 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.21x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

52/100
About the Features

Weather sealing guards against rain and dust during outdoor work, which suits travel and reportage in poor conditions. A fluorine coating on the front element helps water and oil wipe away rather than smear. Rain at a market or dust on a trail gives both plenty to do.

There is no image stabilization in this lens. At slower shutter speeds indoors, you must hold steady, raise ISO or use a tripod; the constant f/2.8 aperture offsets some of that need. There is also no zoom lock, so the barrel can slide when carried facing down.

Neither omission touches the optical design; both affect day-to-day handling. The features score is 52.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
Yes
Built In Lens HoodNo
Lens Hood TypePetal
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationNo

Construction

55/100
About the Construction

Inside are four aspherical elements, whose shaped surfaces help correct distortion and spherical aberration. Distortion can bend straight edges, so this correction matters for architecture. Three low-dispersion elements and one Super ED element help reduce chromatic aberration, the colour fringing that can appear along high-contrast edges in backlit scenes. Focusing moves internal groups only. The construction score stands at 55.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
16
Groups11
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
4
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
3
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
1
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
