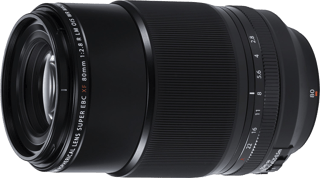

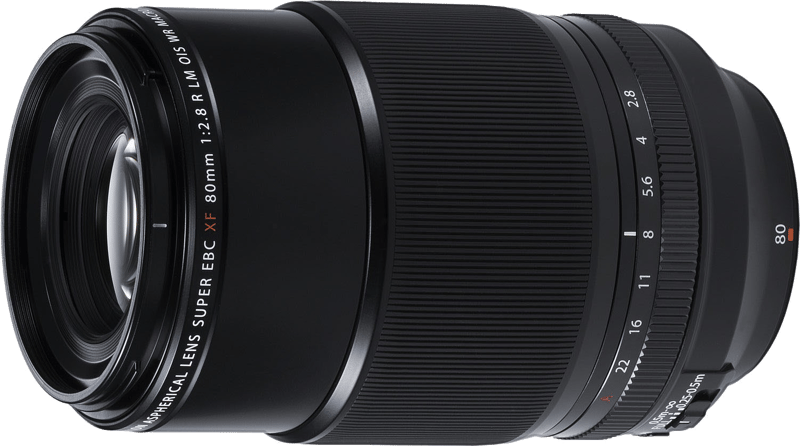

Fujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro

Fujifilm · 80 mm · f/2.8 · XF · Image Stabilization

Fujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro

Score Breakdown

This lens score is calculated from published specifications.

Physical 93
Optics 82
Features 97
Construction 32
82
SCORE /100
Buying Options
What We Like
+True 1:1 life-size macro
+Weather sealed for outdoor close-ups
+Stabilisation steadies handheld macro frames
+Fluorine coating eases front cleaning
+80mm suits portraits and details
Worth Knowing
−Heavy for an APS-C prime
−Single focal length needs footwork
−Design dates from 2017
−Thin depth of field up close
−Uses 62mm screw-in filters

General

About This Lens

This Fujifilm prime does two jobs on X-mount APS-C cameras. Its 80mm focal length gives a short telephoto view that flatters portraits and isolates details. It is also a dedicated macro lens, so close-up work is its main purpose.

Fujifilm introduced the lens in 2017 and still builds it today. It suits garden photographers, insect hunters and anyone photographing small products who also wants a portrait option.

The trade-off is a narrow role. It replaces flexibility with one fixed framing, so it suits photographers who plan close-up and portrait work rather than varied everyday shooting.

BrandFujifilm
Release Year2017
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Pro Branding
ⓘ
Specific branding codes used for professional-tier lenses.
XF
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Fujifilm X
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Fujifilm X
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
APS-C

Physical

93/100
About the Build

At 1 lb 10.5 oz (750 g), it is heavy for an APS-C prime. The barrel runs 5.12 in (130 mm) long and 3.15 in (80 mm) wide, so it feels substantial on a compact mirrorless body.

A screw-in filter attaches directly and must match the 62mm thread. Any 62mm filters you already own will fit.

Lens Weight750 g
Lens Diameter
ⓘ
Width of the lens at its widest point
80 mm
Lens Length
ⓘ
How long the lens is from front to back.
130 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
62 mm

Optics

82/100
About the Optics

The 80mm focal length lets you frame tightly from a comfortable distance. Wary subjects such as butterflies and dragonflies stay in reach without frightening them off. The same view also works well for outdoor portraits and indoor product shots.

Maximum magnification reaches 1x, true life-size scale. The subject is recorded on the sensor at the same size as in life. A small insect or a stamp then fills most of the frame. The lens also focuses as close as 0.8 ft (25 cm) when a tighter viewpoint is useful.

The f/2.8 maximum aperture gives reasonable light for shaded beds and indoor still-life setups. It also separates a portrait subject from a busy background at typical distances.

Depth of field becomes extremely thin at macro distances. Stopping down is often necessary to keep a flower or an insect sharp from front to back. Nine aperture blades help the opening stay round when stopped down, which smooths out-of-focus highlights.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
80 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
2.8
Focal Length Angle of View20.05°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
17.7 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
9020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
No
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
25 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
1x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

97/100
About the Features

Weather sealing protects the lens in damp conditions such as morning dew. That suits garden and trail use, where close-up work often means lying near wet ground or shooting after rain.

A fluorine coating on the front glass helps water and oil slide off. Fingerprints and pollen smudges wipe away more easily, which is practical for a lens that regularly goes close to plants.

Optical stabilisation steadies the camera for handheld frames. At life-size magnification, small camera movement is clearly visible in the picture, so this support is especially valuable here. It also keeps handheld portraits and detail shots workable when a tripod is impractical.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
Yes
Built In Lens HoodNo
Lens Hood TypeRound
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
Yes
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
5 stops

Construction

32/100
About the Construction

The design includes aspherical elements, whose shaped surfaces help reduce distortion and spherical aberration. Distortion can curve straight edges, so the correction matters for small product shots.

Low-dispersion and super-low-dispersion glass also forms part of the design. These glass types help reduce chromatic aberration, the coloured fringes that can appear along high-contrast edges such as backlit petals and water droplets.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
16
Groups12
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
1
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
1
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
1
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
No

Compare This Lens

This lensFujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro

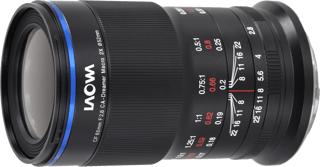

Compared withLaowa 65mm f/2.8 APO 2:1 Ultra Macro

Fujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro versus Laowa 65mm f/2.8 APO 2:1 Ultra Macro

65 mm vs 80 mm · 2× vs 1× close-up reach · Manual focus instead of autofocus

This lensFujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro

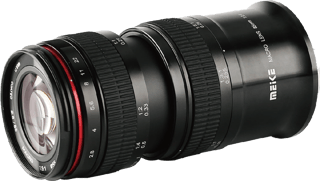

Compared withMeike 85mm f/2.8

Fujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro versus Meike 85mm f/2.8

85 mm vs 80 mm · 0.67× vs 1× close-up reach · Manual focus instead of autofocus

This lensFujifilm FUJINON XF 80mm F/2.8 R LM OIS WR Macro

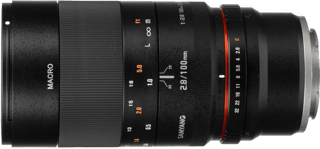

Compared withSamyang 100mm F/2.8 ED UMC Macro
