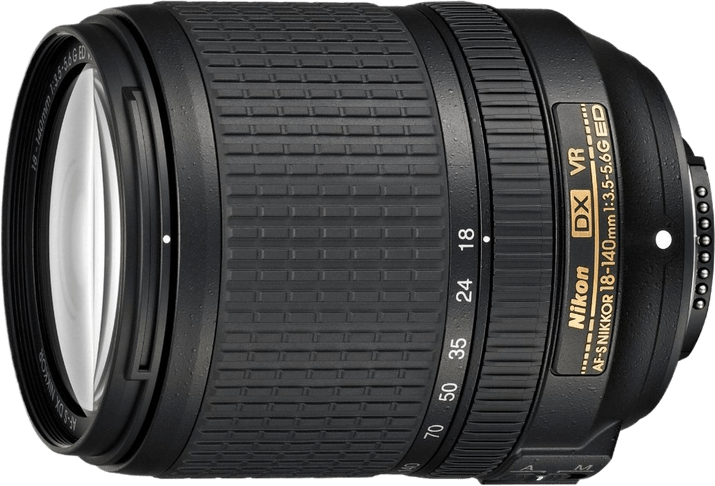

Nikon AF-S DX NIKKOR 18-140mm F/3.5-5.6G ED VR

Nikon · 18–140 mm · f/3.5–5.6 · Image Stabilization

Nikon AF-S DX NIKKOR 18-140mm F/3.5-5.6G ED VR

Score Breakdown

This lens score is calculated from published specifications.

Physical 57
Optics 56
Features 41
Construction 31
51
SCORE /100
Buying Options
What We Like
+One lens covers wide to telephoto
+VR steadies handheld shooting
+Modest weight for all-day carrying
+Close focus for detail shots
+Common 67mm filter size
Worth Knowing
−Aperture slows to f/5.6 at 140mm
−No weather sealing
−No zoom lock
−Introduced in 2013

General

About This Lens

The AF-S DX NIKKOR 18-140mm F/3.5-5.6G ED VR is an all-in-one zoom for Nikon F mount cameras with the APS-C sensor. Its 18–140mm span runs from wide views to a long telephoto reach in a single barrel.

That range suits travel, family days out and walkabout photography, where one lens must handle landscapes, portraits and distant detail alike. The main trade-off is aperture. The maximum opening drops from f/3.5 at 18mm to f/5.6 at 140mm, so the long end needs more light.

Nikon introduced this lens in 2013, and it remains in production. It stays a straightforward choice for DX body owners who want one lens for varied everyday subjects.

BrandNikon
Release Year2013
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Nikon F
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Nikon F APS-C
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
APS-C

Physical

57/100
About the Build

At 1 lb 1.3 oz (490 g), the lens stays manageable for a day of walking and shooting. The body measures 3.07 in (78 mm) across and 3.82 in (97 mm) long.

A screw-in filter must match the 67mm thread on the front. That is a common size, so filters are easy to find.

Lens Weight490 g
Lens Diameter
ⓘ
Width of the lens at its widest point
78 mm
Lens Length
ⓘ
How long the lens is from front to back.
97 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
67 mm

Optics

56/100
About the Optics

The 18mm wide end suits interiors, group portraits and streets where you cannot step back. At 140mm, distant subjects fill the frame, which helps at sports grounds, wildlife parks and candid portraits from a distance. Because this is an APS-C lens, the telephoto end frames subjects more tightly than it would on a full-frame body.

The maximum aperture changes with zoom position. At 18mm you get f/3.5, which helps in dim rooms and evening streets. Zoom in to 140mm and the widest opening becomes f/5.6. Indoors at the long end, you will lean on higher ISO settings or the stabilisation. Outdoors in daylight, the smaller opening matters much less.

Focus reaches as close as 1.5 ft (45 cm). That lets you fill the frame with flowers, food or market details without changing lenses. The maximum magnification reaches 0.23x, enough for record shots of objects and textures on your travels.

Aperture choice also shapes backgrounds. Wide open at f/3.5, close subjects separate more softly from their surroundings; stopped down, scenes render crisply front to back.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
18–140 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
3.5–5.6
Focal Length Angle of View76.44°–11.56°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
46.5 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
7020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
45 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.23x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

41/100
About the Features

The VR system steadies the image and allows slower shutter speeds when you shoot handheld. This helps most at the 140mm telephoto end, where small hand movements show up clearly, and in dim interiors at 18mm. It counters your own camera shake, so it suits static subjects rather than fast motion. Many travel scenes, from dim cathedrals to evening markets, fall into that category.

There is no zoom lock, so gravity can pull the barrel down when the lens hangs from a strap. Weather sealing is absent as well, so keep the camera sheltered in rain, spray or dust.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
No
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Lens Hood TypePetal
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
Yes
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
4 stops

Construction

31/100
About the Construction

The design includes aspherical elements and low-dispersion glass. Aspherical surfaces help correct distortion, which can bend straight edges in wide shots such as building interiors at 18mm. The low-dispersion glass helps reduce chromatic aberration, the coloured fringes that can appear along high-contrast edges such as branches against a bright sky.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
17
Groups12
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
1
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
1
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
No
