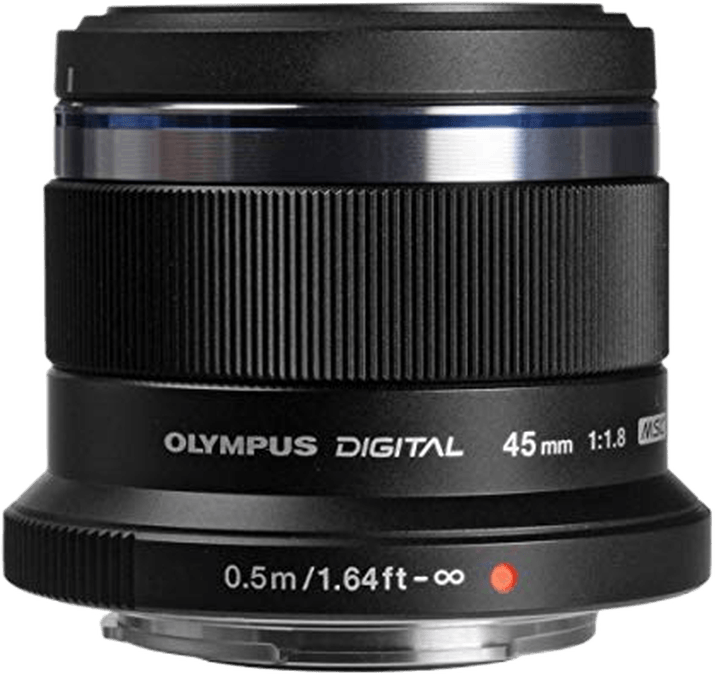

OM System M.Zuiko Digital 45mm f/1.8

OM System · 45 mm · f/1.8

OM System M.Zuiko Digital 45mm f/1.8

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 64
Optics 81
Construction 23
56
SCORE /100
Buying Options
What We Like
+Bright f/1.8 aperture for low light
+Weighs just 4.1 oz (116 g)
+45mm short telephoto suits portraits
+Close focusing for nearby details
+Internal focusing keeps barrel length constant
Worth Knowing
−No built-in image stabilization
−No weather sealing for dusty conditions
−Fixed 45mm framing, no zoom

General

About This Lens

This OM System prime fits Micro Four Thirds cameras. At 45mm it works as a short telephoto on the format, which makes it a natural portrait length. Candid people pictures, family gatherings and quiet event work suit it as well. You can also use it for detail shots at events, such as table settings or flowers.

The main trade-off is the fixed focal length. You frame by stepping closer or further back rather than zooming. That suits photographers who own a zoom already and want a small, light portrait prime.

BrandOM System
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Micro Four Thirds
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Micro Four Thirds
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Micro Four Thirds

Physical

64/100
About the Build

The lens weighs 4.1 oz (116 g) and measures 2.2 in (56 mm) across, so it is a very small and light lens. The front thread accepts 37mm filters, and a screw-in filter must match that 37mm thread to attach directly. It scores 64 out of 100 here for physical specification.

Lens Weight116 g
Lens Diameter
ⓘ
Width of the lens at its widest point
56 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
37 mm

Optics

81/100
About the Optics

The 45mm focal length gives a short telephoto view on Micro Four Thirds. It suits portraits, candid people pictures and details at events. Framing depends on subject distance. Step back to include more of a person or setting; move closer for a more prominent subject. Check that the room gives you enough space.

The f/1.8 maximum aperture is bright. It passes more light to the sensor than a smaller opening would. In dim rooms or evening streets, that lets you set a faster shutter speed in the same light. At close portrait distances the zone of sharpness can be shallow, so focus placement matters.

At its widest opening, the lens can soften a background behind a portrait subject. The result depends on the distance between the camera, subject and background. A more distant background can help separate the person from a busy street or cluttered room. Check focus carefully on the face.

Closest focus is 1.6 ft (50 cm), measured from the sensor. This is the minimum separation for nearby objects. Leave room ahead of the front glass and avoid shading a small subject. The optics specification score is 81 out of 100.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
45 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
1.8
Focal Length Angle of View27°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
19.25 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
7020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
No
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
50 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.11x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

About the Features

There is no stabilisation in the lens. A camera with body stabilisation can reduce shake for still scenes. Firm support helps with slow exposures. For people moving at an event, use enough shutter speed for their movement as well as your own.

There is no weather sealing. Use cover in rain and keep the lens away from blowing dust or sea spray. Keep the mount clean when changing lenses outdoors.

Keep the front glass protected during transport. Remove loose dust before wiping marks, especially after work near sand or soil. A cap helps stop dirt reaching the glass when the lens is stored.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
No
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Lens Hood TypeRound
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationNo

Construction

23/100
About the Construction

Nine elements in eight groups form the optical path. Focusing is internal, so elements move within the barrel and the lens keeps a constant length as you focus. This helps keep space ahead of the lens predictable when working near a small subject. The construction specification score is 23 out of 100.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
9
Groups8
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
0
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
0
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
