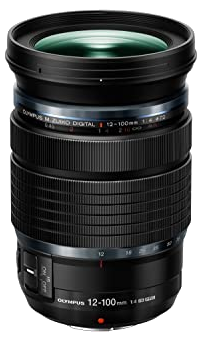

OM System M.Zuiko Digital ED 12-100mm f/4.0 IS PRO

OM System · 12–100 mm · f/4 · PRO · Image Stabilization

OM System M.Zuiko Digital ED 12-100mm f/4.0 IS PRO

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 100
Optics 68
Features 58
Construction 69
72
SCORE /100
Buying Options
What We Like
+Versatile 12–100mm travel zoom
+Constant f/4.0 aperture throughout
+Weather sealed for outdoor work
+Built-in stabilisation steadies handheld shots
+Close focus for travel details
Worth Knowing
−Modest f/4.0 widest aperture
−No zoom lock switch

General

About This Lens

This OM System zoom covers 12–100mm on the Micro Four Thirds mount, from a wide view to a long reach. That coverage makes it a one-lens choice for travel. You can frame streets and interiors at 12mm, portraits at mid lengths, then distant detail at 100mm. Street shooters, holiday makers and everyday photographers get the most from it. Fewer lens swaps also help in dusty or damp conditions.

The lens was introduced in 2016. Its f/4 maximum aperture is available throughout the zoom. In dim light, check whether that opening permits the shutter speed you need. Built-in stabilisation helps with camera shake, but moving people still require a suitable exposure time.

BrandOM System
Release Year2016
Pro Branding
ⓘ
Specific branding codes used for professional-tier lenses.
PRO
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Micro Four Thirds
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Micro Four Thirds
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Micro Four Thirds

Physical

100/100
About the Build

The lens weighs 1 lb 3.8 oz (561 g) and measures 3.05 in (77.5 mm) across and 4.59 in (116.5 mm) long. That weight is noticeable on a compact Micro Four Thirds body. A screw-in filter must match the 72mm front thread.

Lens Weight561 g
Lens Diameter
ⓘ
Width of the lens at its widest point
77.5 mm
Lens Length
ⓘ
How long the lens is from front to back.
116.5 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
72 mm

Optics

68/100
About the Optics

The 12–100mm range offers varied framing without a lens change. At 12mm, the wide view suits interiors and landscapes. How much fits depends on your position and the scene. At 100mm, a distant detail occupies more of the frame from the same spot. Moving the camera changes perspective as well as framing.

The constant f/4 maximum aperture stays available at every focal length. Zooming still changes the composition, so a meter reading can change with the scene. Depth of field also varies with focal length and focus distance. A close subject can have a soft background, particularly with space behind it.

At 12mm, closest focus is 0.5 ft (15 cm) and maximum magnification is 0.3x. These values describe the wide end, rather than every zoom setting. A flower or small object can become a foreground detail within a wider scene. Leave enough room ahead of the lens for light to reach the subject.

On our specification scale, the optics score 68/100.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
12–100 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
4
Focal Length Angle of View84°–12°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
19.25 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
7020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
15 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.3x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

58/100
About the Features

Built-in image stabilisation steadies the camera for handheld shooting. It helps reduce blur from hand movement at slower shutter speeds. That is useful for static scenes such as dusk cityscapes or shaded interiors.

The lens is sealed against dust and moisture. That protection suits coastal walks, dusty trails and changeable travel weather, the kinds of conditions a travel zoom often meets.

There is no zoom lock switch. Check the selected focal length when composing, especially after changing camera position. Remove loose particles before cleaning the front glass. Keep both caps on during transport and dry the exterior before storage after working in damp conditions.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Lens Hood TypePetal
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
5 stops

Construction

69/100
About the Construction

The formula includes three aspherical elements plus one double-sided aspherical element. Their shaped surfaces help correct distortion and spherical aberration. Distortion can make straight building edges appear curved. Five ED elements help reduce chromatic aberration, the coloured fringes that can appear along high-contrast edges such as branches against bright sky.

Internal focusing keeps the external length unchanged as focus adjusts. This describes focusing movement, rather than zooming. Check focus on the important detail after you change the composition, particularly when working close.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
17
Groups11
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
4
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
1
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
5
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
