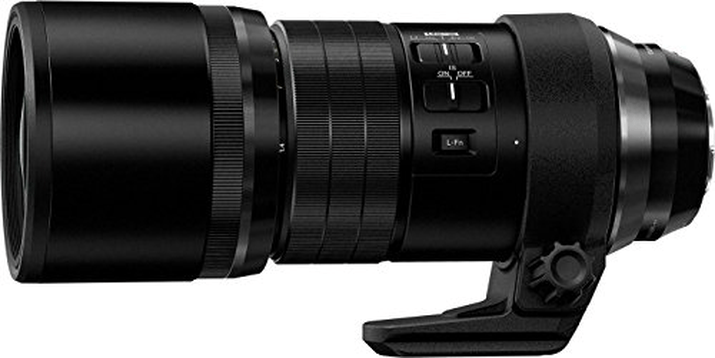

OM System M.Zuiko Digital ED 300mm f/4.0 IS PRO

OM System · 300 mm · f/4 · PRO · Image Stabilization

OM System M.Zuiko Digital ED 300mm f/4.0 IS PRO

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 99
Optics 71
Features 73
Construction 27
73
SCORE /100
Buying Options
What We Like
+Long reach for distant subjects
+In-lens stabilisation helps handheld shooting
+Weather sealing for outdoor conditions
+Screw-in 77mm filters fit directly
+Close focus for small details
Worth Knowing
−Fixed 300mm framing with no zoom
−Heavy for long handheld use
−f/4 maximum limits dim-light shooting
−Stabilisation steadies the camera, not subjects

General

About This Lens

Olympus introduced this 300mm Micro Four Thirds prime in 2016. Its tight view suits birds, wildlife and sport when subjects are distant or cannot be approached. Check whether your outing also needs a wider lens for nearby scenes or groups of animals.

The main trade-off is the fixed focal length. You change position to adjust framing, or wait for a subject to enter the chosen area. Barriers and the needs of wildlife can limit movement. Consider the weight of the full camera kit and the support available for a long session.

BrandOM System
Release Year2016
Pro Branding
ⓘ
Specific branding codes used for professional-tier lenses.
PRO
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Micro Four Thirds
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Micro Four Thirds
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Micro Four Thirds

Physical

99/100
About the Build

The lens weighs 2 lb 12.8 oz (1270 g) without the tripod adapter and measures 8.94 in (227 mm) long with the built-in hood retracted. Extend the hood for use when needed. Allow room for the adapter and caps when packing. Screw-in filters must match the 77mm front thread.

Lens Weight1270 g
Lens Diameter
ⓘ
Width of the lens at its widest point
92.5 mm
Lens Length
ⓘ
How long the lens is from front to back.
227 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
77 mm

Optics

71/100
About the Optics

At 300mm on Micro Four Thirds, the lens selects a small part of a distant scene. A bird, animal or player occupies more of the frame as the camera gets closer. How much fits depends on subject size and distance. Check that the framing leaves room for expected movement.

The f/4 maximum aperture is the widest opening available. In woodland shade or at dusk, check whether the shutter speed needed for wildlife calls for a higher ISO. A close subject can stand out against a soft background when there is enough space behind it. Stop down when more depth is needed.

Closest focus is 4.6 ft (140 cm), measured from the sensor. Native maximum magnification is 0.24x. This range can help with larger insects, flowers and small birds. Leave room ahead of the lens for light. Support the camera for a fixed close composition and refocus after moving it. For a flower moving in the wind, wait for a still moment and check the important detail again.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
300 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
4
Focal Length Angle of View4.1°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
19.25 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
9020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
No
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
140 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.24x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

73/100
About the Features

Image stabilisation helps reduce blur from camera shake. It can assist with still subjects at this long focal length, but it cannot freeze a flying bird or running animal. Choose shutter speed for their movement as well as your hold. Follow the camera instructions when combining lens and body stabilisation.

The body is designed to resist dust and moisture. Use cover in persistent rain and protect the open mount during lens changes. Dry the exterior before storage after a damp session. Remove loose grit before wiping the front glass. Check for fingerprints before photographing towards a low sun or bright lamp.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodYes
Lens Hood TypeRound
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
Yes
Image StabilizationYes
IS Efficiency
ⓘ
IS efficiency refers to the effectiveness of the image stabilization system in compensating for the blurring effects of camera shake, quantified by the number of stops of stabilization it provides.
4 stops

Construction

27/100
About the Construction

Three Super ED elements sit within the 10-group design. This glass helps reduce chromatic aberration, where different colours focus at different points and leave fringes along high-contrast edges. Birds against bright sky are one relevant example. Focusing is internal, so the barrel keeps a constant length as focus changes.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
17
Groups10
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
0
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
0
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
3
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
