OM System M.Zuiko Digital ED 40-150mm f/4.0-5.6 R

OM System · 40–150 mm · f/4–5.6

OM System M.Zuiko Digital ED 40-150mm f/4.0-5.6 R

Score Breakdown

This lens score is calculated from published specifications.

Physical 64
Optics 53
Features 0
Construction 54
45
SCORE /100
Buying Options
What We Like
+Weighs only 6.7 oz (190 g)
+150mm reach for distant subjects
+58mm thread matches common filters
+Internal focusing keeps barrel length fixed
Worth Knowing
−No in-lens image stabilisation
−No weather sealing
−Aperture slows to f/5.6 at 150mm
−No zoom lock

General

About This Lens

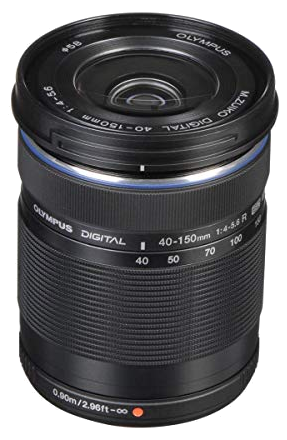

This OM System zoom spans 40–150mm on Micro Four Thirds cameras. The short end gives a comfortable portrait view; the long end reaches distant action. It suits head-and-shoulders portraits, outdoor sport and nearby wildlife.

You can carry it all day without noticing it. One lens covers portraits, distant detail and everything between. That makes it a simple companion for travel, walks and family days out.

The lens fits the Micro Four Thirds mount, so it pairs with the system's small bodies. Its main trade-off is light gathering. The maximum aperture slows as you zoom in, which favours daylight work over dim interiors.

BrandOM System
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Micro Four Thirds
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Micro Four Thirds
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
Micro Four Thirds

Physical

64/100
About the Build

The lens weighs 6.7 oz (190 g) and measures 2.5 in (63.5 mm) across. The light weight suits long handheld sessions outdoors. A screw-in filter must match the 58mm thread. Our physical score is 64.

Lens Weight190 g
Lens Diameter
ⓘ
Width of the lens at its widest point
63.5 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
58 mm

Optics

53/100
About the Optics

The 40–150mm range gives real working room. At 40mm you can frame a portrait from a comfortable distance. Around the middle of the range, headshots need no crowding. At 150mm you make a distant subject much larger, which helps with sport on a far field or a bird at a feeder. One twist of the rotary zoom ring moves you between those views.

Micro Four Thirds is a small format, so the 150mm end frames distant subjects much as a far longer lens would on a bigger sensor. That apparent reach is a strong reason to carry this zoom. A small, light lens covers subjects that usually need something larger.

Light gathering is the constraint. The maximum aperture opens to f/4 at 40mm and slows to f/5.6 at 150mm. In daylight that is workable. Indoors or at dusk you will need a higher ISO or a steadier hold. A distant subject at the long end still stands apart from a busy background, though a faster lens would separate it more. We score these optics 53.

Closest focus is 3 ft (90 cm). That lets you tighten framing on a seated subject or a still arrangement without crowding it. Maximum magnification is 0.16x, which suits a single flower head or a similar small detail.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
40–150 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
4–5.6
Focal Length Angle of View30°–8.2°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
19.25 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
7020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
Yes
Zoom Mechanism
ⓘ
System enabling zoom function
Manual
Zoom Ring
ⓘ
If zooming is adjusted using a zoom ring
Yes
Zoom Type
ⓘ
The design or approach to zooming
Rotary
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
90 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.16x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

0/100
About the Features

No stabilisation is built into the lens. Camera shake shows more readily at the 150mm end. For handheld shots, use a faster shutter speed or brace yourself. A monopod or railing gives a steadier platform when light falls. In bright conditions, handholding stays comfortable.

Weather sealing is absent, so keep the lens dry in rain and dust. If conditions turn wet, tuck it away or shoot from cover. The front glass also lacks a fluorine coating, so wipe smudges off with care.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
No
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Zoom Lock
ⓘ
Zoom lock allows the zoom ring to be locked at the desired focal length
No
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationNo

Construction

54/100
About the Construction

One aspherical element helps correct distortion, where straight edges such as a fence or doorway could otherwise bow. One low-dispersion element helps reduce colour fringing along high-contrast edges, such as dark branches against a bright sky at the long end.

Focusing is internal, so the barrel does not extend as you focus. Our construction score is 54.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
13
Groups10
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
1
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
1
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
