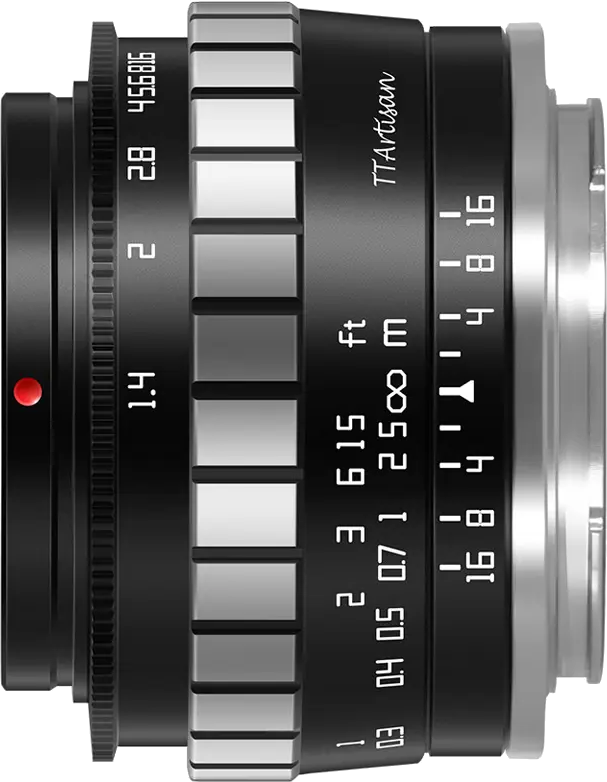

TTArtisan 23mm f/1.4

TTArtisan · 23 mm · f/1.4

TTArtisan 23mm f/1.4

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 57
Optics 75
Construction 15
50
SCORE /100
What We Like
+Bright f/1.4 aperture for dim light
+Ten blades smooth the background
+Six mirrorless mount versions
+Focuses at 0.7 ft (20 cm)
Worth Knowing
−Manual focus only
−No image stabilisation
−No weather sealing
−APS-C format only

General

About This Lens

The TTArtisan 23mm f/1.4 is a compact prime for APS-C mirrorless cameras. It comes in versions for Canon RF, Fujifilm X, Leica L, Micro Four Thirds, Nikon Z and Sony E. Choose the one made for your system. On APS-C, 23mm frames like a moderate wide angle on full frame.

That view suits street photography, travel and everyday scenes such as cafés and groups of friends. The f/1.4 aperture makes the lens usable indoors and after dark. The main trade-off is focusing: this lens is manual focus only, so every shot relies on your own eye.

BrandTTArtisan
Release Year2022
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Micro Four Thirds
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Micro Four Thirds
Maximum Format
ⓘ
Largest sensor size compatible with the lens.
APS-C

Physical

57/100
About the Build

The Canon RF version measures 2.36 in (60 mm) across and 1.59 in (40.5 mm) long, so it adds little bulk to a small camera. Other mount versions may differ in these measurements. A screw-in filter must match the 43mm thread on the front.

Lens Diameter
ⓘ
Width of the lens at its widest point
60 mm
Lens Length
ⓘ
How long the lens is from front to back.
40.5 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
43 mm

Optics

75/100
About the Optics

The 23mm focal length takes in a wide view without the strong perspective stretch of a wider lens. Streets and interiors keep a natural look. You can frame a shop front or a small group from a few steps back. For travel it covers courtyards, alleys and small rooms from one spot.

Focus as close as 0.7 ft (20 cm) lets you fill the frame with food on a table or goods on a stall. That close working distance suits detail shots while you walk a market or sit down to eat.

The f/1.4 maximum aperture passes much more light than a slower zoom. That keeps shutter speeds usable in dim interiors and lit evening streets while holding ISO down. The bright aperture also gives a clear view for composing and focusing by hand. Close to your subject it blurs a busy background, which helps for portraits at a table or a trader amid clutter.

Ten aperture blades keep the opening close to round when you stop down. Rounded openings tend to render out-of-focus highlights and background blur more smoothly. The optics specification scores 75 out of 100 on this page.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
23 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
1.4
Focal Length Angle of View63.2°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
19.25 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Manual
Blades
ⓘ
Number of diaphragm blades in aperture
10020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
No
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
20 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.1x
Autofocus ModeNo
Manual ModeYes
Manual Focusing RingYes

Features

About the Features

There is no image stabilisation, so in low light your shutter speed and ISO do the work of keeping the frame sharp. Brace your elbows or steady the camera against a wall. A support holds the camera still, but it will not freeze a moving subject.

The lens has no weather sealing. In rain or blowing dust, put the camera away or keep it under a coat until conditions clear.

Focusing is manual at all times. For quick street work at 23mm you can stop down and zone focus, trusting depth of field. For static subjects, take your time with the focusing ring and check the frame.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
No
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
No
Built In Lens HoodNo
Lens Hood TypeRound
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationNo

Construction

15/100
About the Construction

Eight elements sit in six groups, and one of them is a low-dispersion element. Low-dispersion glass helps reduce chromatic aberration, where different colours focus differently and form coloured fringes along high-contrast edges such as branches against a bright sky. The element count alone does not tell you how much fringing this lens shows.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
8
Groups6
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
0
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
1
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
No
