Viltrox AF 16mm F1.8

Viltrox · 16 mm · f/1.8

Viltrox AF 16mm F1.8

Score Breakdown

Scores combine our editorial testing with published lab data.

Physical 64
Optics 85
Features 32
Construction 54
67
SCORE /100
What We Like
+Bright f/1.8 for dim scenes
+16mm coverage for wide scenes
+Close focus for foreground detail
+Weather-sealed barrel for outdoor work
+Accepts 77mm screw-in filters
Worth Knowing
−No built-in image stabilization
−Fixed 16mm framing, no zoom

General

About This Lens

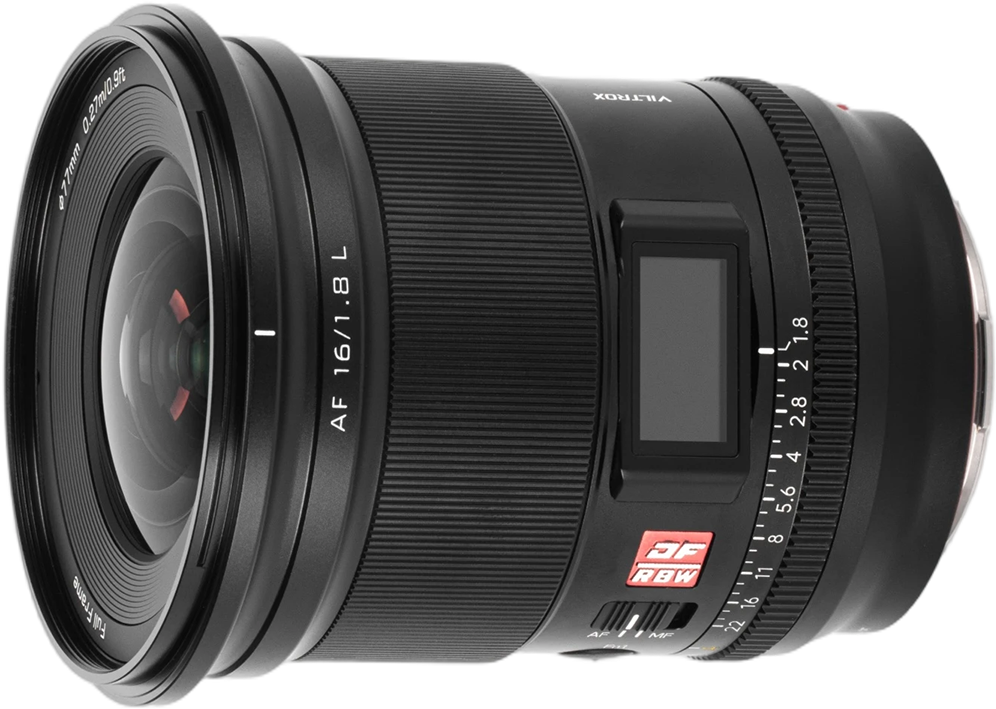

The Viltrox AF 16mm F1.8 is a wide-angle prime introduced in 2023. It is offered for Sony E, Leica L and Nikon Z, with full-frame coverage. Choose the version that matches your camera mount. Each shares the same focal length and maximum aperture.

At 16mm, it suits landscapes, architecture, interiors and wide street scenes. The f/1.8 opening helps in low light and for night-sky work. The fixed focal length means you change position to adjust framing. Consider the space you have available, particularly indoors or in crowded places.

BrandViltrox
Release Year2026
Production Status
ⓘ
Current status of lens manufacturing (e.g., in production, discontinued).
In Production
Lens Mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Leica L
System
ⓘ
Indicates which camera system the lens is designed to attach to.
Leica L

Physical

64/100
About the Build

The lens weighs 1 lb 3.4 oz (550 g) and measures 3.35 in (85.2 mm) across and 4.06 in (103 mm) long. Allow room for this body in your bag, particularly if you carry several lenses. A screw-in filter attaches directly to the 77mm thread. Match that size when selecting a filter for the front.

Lens Weight550 g
Lens Diameter
ⓘ
Width of the lens at its widest point
85.2 mm
Lens Length
ⓘ
How long the lens is from front to back.
103 mm
Front Filter Compatible
ⓘ
Some lenses are compatible with front filters, some are compatible with back filters and some are compatible with both. Front filters are usually more convenient to add and remove.
Yes
Front Filter Size
ⓘ
Diameter of attachable filters.
77 mm

Optics

85/100
About the Optics

A 16mm focal length gives a wide view on full frame. It can help include a large landscape or an interior from limited space, although the scene and your position determine what fits. A person can appear within a broad setting. Keep faces away from the extreme frame edges when their shape matters.

The f/1.8 maximum aperture is the defining strength. It passes more light than smaller openings allow, so dim churches, dusk streets and night skies stay within reach. For night skies, the wide opening gathers more starlight before exposures stretch long enough to trail. Handheld work in fading light becomes more manageable.

Close focus reaches 0.9 ft (27 cm). That lets you set a foreground rock, plant or door detail near the camera and still hold the wider scene in frame. This near-far layering gives wide landscapes a clear sense of depth.

Depth of field depends on aperture and focus distance. At f/1.8, a nearby subject can have a soft background even with this wide view. Stop down when you need more of the scene to stay sharp. Check both near and distant details, especially when a foreground object is close to the camera.

Focal Range
ⓘ
Shortest to longest focal length of the lens (zoom range start - end )
16 mm
Aperture Range
ⓘ
Largest aperture at the lens's shortest focal length to longest focal length (aperture range start - end)
1.8
Focal Length Angle of View105.6°
Flange Focal Distance
ⓘ
Distance from lens mount to sensor.
20 mm
Diaphragm Type
ⓘ
Structure and design of the aperture
Automatic
Blades
ⓘ
Number of diaphragm blades in aperture
9020
Zoom Lens
ⓘ
Zoom allows you to vary the focal length, change between long shots and close-ups
No
Closest Focusing Distance
ⓘ
Minimum distance for a subject to be in focus.
27 cm01500
Maximum Magnification
ⓘ
Largest size a subject can be reproduced
0.1x
Autofocus ModeYes
Manual ModeYes
Manual Focusing RingYes

Features

32/100
About the Features

The barrel is sealed against dust and moisture, a useful safeguard for landscape shoots in wind, sand and damp morning air. The main gap is stabilisation. This lens has none built in, so a steady hold or an in-body system must manage shake.

Protect the lens in persistent rain and keep both ends capped during transport. Remove loose grit before wiping the front glass. Check for marks before a night shoot, when bright points of light can make a dirty surface more troublesome.

Weather Sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
Yes
Fluorine Coating
ⓘ
Coating to repel water and oil from lens elements.
Yes
Built In Lens HoodNo
Lens Hood TypePetal
Teleconverter
ⓘ
A teleconverter (extender) is an extra piece of equipment that fits between the lens and the camera body to enhance magnification
No
Image StabilizationNo

Construction

54/100
About the Construction

The optical path holds 15 elements in 12 groups, including three aspherical elements. These specially shaped surfaces help correct distortion, which can bend straight edges. That matters because architecture and interiors are core subjects for a 16mm lens.

Four low-dispersion elements help reduce chromatic aberration, where colours focus differently and form fringes along high-contrast edges. Focusing is internal, so the barrel keeps a fixed length while the lens focuses.

Elements
ⓘ
Lens elements refer to individual pieces of glass within the lens.
15
Groups12
Aspherical Elements
ⓘ
The number of aspherical lens elements which can help correct aberrations such as spherical aberration.
3
Bi Aspherical Elements
ⓘ
Elements with two non-spherical surfaces
0
Low Dispersion
ⓘ
Elements that reduce chromatic aberration
4
Super Low Dispersion
ⓘ
Advanced elements further reducing chromatic aberration
0
CA Reduction
ⓘ
Built-in features to reduce chromatic aberration
0
Internal Focusing
ⓘ
Internal Focusing means that the lens does not change in size during focusing, and the front element does not rotate.
Yes
