CameraReview

Phase One P45 Plus

Phase One · Medium Format · 39 MP · Medium Format

Phase One P45 Plus

Score Breakdown

Scores combine our editorial testing with published lab data.

Optics 66
Features 14
Storage & Battery 51
51
SCORE /100
Independent Lab Scores
THIRD-PARTY LAB DATA · DXOMARK
77
Overall score
24.2
Color depth
12.9
Dynamic range
622
Low light ISO
Independent measurement — not part of our /100 score.
Buying Options
What We Like
+39 megapixels for detailed large prints
+Mamiya 645 AF lens compatibility
+Battery rated at 2500 shots
+Fast 1/10000s maximum shutter speed
+Built-in WiFi for wireless connection
Worth Knowing
−No video recording capability
−Slow shooting at 0.67 fps
−Maximum ISO limited to 800
−Single Compact Flash card slot
−No live view for composing

General

About This Camera

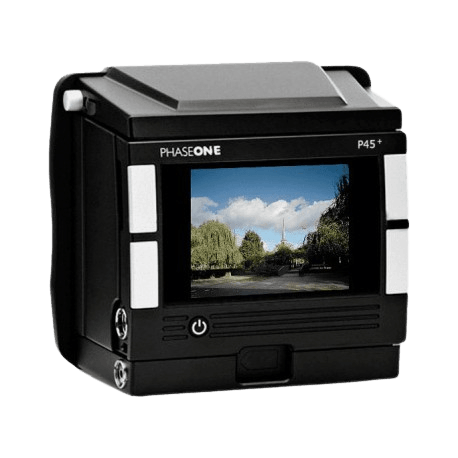

The Phase One P45 Plus is a 2007 medium format camera built around a high-resolution CCD sensor. It is made for photographers who want maximum detail from each frame rather than speed.

That resolution suits studio, product and landscape work, where the camera can be set up carefully and its deliberate pace is not a hindrance. Anyone shooting moving subjects or working in low light will feel its limits quickly.

Owning it means handling a large body weighing 1800 grams, best suited to a strap or tripod rather than casual carry. The workflow runs on Compact Flash cards and composition through an optical pentaprism viewfinder.

BrandPhase One
ModelP45 Plus
Released
ⓘ
Refers to the year this camera was officially made available for sale.
2007
Announcement date
ⓘ
Refers to the date the manufacturer publicly announced the upcoming release and general specs of this camera.
January 1, 2007
Camera typeMedium Format
Camera size156 x 128 x 184 mm
Camera weight1800 g

Optics

66/100
About the Optics

At the heart of the P45 Plus is a 39 megapixel CCD sensor in medium format size. That combination delivers files with room for large prints and generous cropping, and the ISO 50 base setting rewards careful, tripod-based work in controlled light.

This is a camera for deliberate photography. The 0.67 fps shooting rate means taking one considered frame at a time, best matched to static subjects such as landscapes, products and posed portraits where focus is confirmed before the exposure.

There is no in-body stabilisation, so steady technique or support such as a tripod helps guard against camera shake at slower shutter speeds. The 1/10000s maximum shutter speed gives you headroom for wide apertures in bright conditions.

The Optics score of 66 is good, placing the camera around the middle of cameras in our database for Optics. Resolution and sensor format score well, while the slow shooting pace, the ISO ceiling of 800 and the three-point autofocus system cost points.

Megapixels
ⓘ
The higher the number of megapixels, the more detail the cameras sensor can capture.
39 MP050
Image resolution
ⓘ
Image resolution is measured in pixels and megapixels, width by height. The higher the number, the higher its resolution.
7246 x 5444
Sensor type
ⓘ
The camera sensor captures light and records the image. Sensors vary in physical size, the number of pixels, and quality.
CCD
Sensor size
ⓘ
The sensor size contributes to the overall quality as well as the dynamic and tonal range a camera can capture. As a rule of thumb, the more surface there is to read the light, the more information it will capture.
37 x 49
Sensor format
ⓘ
Refers to the most commonly used sensor sizes.
Medium Format
Continuous shooting
ⓘ
The number of sequential frames per second the camera can write to the memory card when shooting in burst or continuous mode.
0.67 fps045
Lens mount
ⓘ
The lens mount will tell you what type of lens range you can fit onto the camera body. Often the same camera company will have different lens ranges for different cameras.
Mamiya 645 AF
Image processor
ⓘ
The image processor in the camera converts the information collected on the sensor for digital storage on the memory card.
Phase-One
Aspect ratio
ⓘ
The aspect ratio refers to the proportional difference between width and height. The most popular aspect ratios are 3:2 and 4:3.
4:3
Min ISO
ⓘ
Refers to the lowest native (or 'base') ISO setting. Lower ISO are less sensitive to light but make a cleaner image.
5030200
Max ISO
ⓘ
Refers to the highest native (or 'base') ISO setting. Higher ISO is necessary for low-light situations or night photography, but higher ISOs often introduce grain or noise.
8003003280000
Min ISO (expanded)
ⓘ
Expanded (or extended) ISO is a digitally enhanced feature available on some cameras. It allows you to push beyond the native ISO range if necessary.
5030200
Max ISO (expanded)
ⓘ
Expanded (or extended) ISO is a digitally enhanced feature available on some cameras. It allows you to push beyond the native ISO range if necessary.
8003003280000
Minimum shutter speed
ⓘ
The minimum shutter speed will tell you the longest exposure your camera can take without using an external accessory.
360044080
Max shutter speed
ⓘ
The maximum shutter speed tells you the length inside 1 second the camera will capture. These can sometimes be extended with accessories such as extra external batteries.
1000080032000
Autofocus points
ⓘ
Autofocus points show where the camera is focusing graphically as squares or brackets in Live View or on an electronic viewfinder. These points are also used for light meter readings.
30300
In-body stabilisation
ⓘ
In-body Stabilization means the camera has a certain technology embedded that counteracts camera shake.
No
Viewfinder type
ⓘ
The viewfinder type is either electronic or optical. Electronic viewfinders will have a small screen in the viewfinder. Optical viewfinders will use prisms and mirrors to look through the lens.
Optical (pentaprism)
Viewfinder dotsN/A

Video

About the Video

The P45 Plus does not record video in any mode. It is a stills camera throughout, so moving-image work needs a separate tool.

Built-in timelapse is also absent, so interval sequences cannot be set up in-camera.

The rear LCD offers no live view either, so there is no electronic preview of a scene; it serves purely for reviewing captured frames.

Video
ⓘ
Indicates if this camera is capable of recording video.
No
Max video resolution
ⓘ
The best resolution this camera can capture video in. Modern cameras can capture up to 8K video.
N/A
Max video format
ⓘ
Video resolution measured by the greatest number of pixels possible in each frame, width by height. A higher resolution means more detail or clarity in your video.
N/A
Max video frame rate
ⓘ
How many frames per second your video will capture. Most cameras have options for multiple frame rates, depending on the resolution you shoot in. For a general video, 24p or 30p is the standard, but more serious filmmakers may need a higher frame rate for creative effect.
N/A
Timelapse built in
ⓘ
A built in time-lapse mode will allow continuous shooting throughout a prolonged period of time to be compressed into a sped up video.
No
Video file format
ⓘ
Different cameras can record in various video file formats. The File format you record in can impact how you edit and use the files.
N/A

Features

14/100
About the Features

The feature set is sparse, and the Features score of 14 reflects that. The fixed 2.2 inch LCD carries 230,400 dots for checking shots, with no touch input, no flip mechanism and no live view, so composition happens entirely through the optical pentaprism viewfinder.

Because the screen is small and modest in resolution, critical image checks are best done on a computer afterwards. The fixed screen cannot be angled for waist-level or overhead composition.

There is no weather sealing, so dust and moisture need managing with care. Flash is handled externally, since the camera has no built-in flash.

WiFi is built in, while Bluetooth and GPS are absent.

Builtin flash
ⓘ
A built-in flash will often be positioned right above the lens. This will automatically pop up when you activate it.
No
External flash
ⓘ
External flashes are often connected through a hot shoe at the top of a camera, or a cable at the side of the camera.
Yes
GPS
ⓘ
GPS features in a camera will include location metadata to each of your photographs.
No
Weather sealing
ⓘ
Weather sealing capabilities will give you more confidence when shooting in unfavourable conditions.
No
Screen typeLCD
Touch screen
ⓘ
Touchscreen allows you to change camera settings and access menus with a swipe of your finger, instead of using buttons.
No
Screen size2.2"
Screen dots
ⓘ
Screen dots indicate the resolution of the LCD screen by including each sub pixel.
2304001150001500000
Flip screen
ⓘ
A flip screen (or articulating screen) is a second screen which can flip out from the side or top of the camera. This rotating screen allows you more freedom to take photos at different angles.
No
Live view
ⓘ
Live View feature allows you to see a continuous live video of what is being seen through your lens.
No
Wi-Fi
ⓘ
Built-in Wi-Fi allows you to connect your camera and share images wirelessly.
Yes
Bluetooth
ⓘ
Bluetooth capabilities allow you wireless control of your camera with other external devices.
No

Storage & Battery

51/100
About the Storage & Battery

Storage runs on a single Compact Flash slot, and the missing second slot is part of why the Storage & Battery score is a modest 51. With files this large, plan on carrying several cards and downloading regularly.

The BP-915 battery is rated for 2500 shots, a figure that earned nearly full marks in our scoring. Ratings of this kind do not promise identical endurance in every situation, so plan around your own usage.

USB charging is absent, so topping up from a laptop or power bank is not possible. That makes a charged spare battery a natural part of the kit for long days.

Memory cardCompact Flash
Dual memory card slotsNo
Battery typeBP-915
Battery life
ⓘ
Approximately how long this cameras battery will last measured by how many photographs you will be able to take.
2500 shots1505000
USB chargingNo
